This article covers the full UK road sign system and the 100 signs the DVSA tests most often. Every mock test on UK Test Hub draws from this same bank — pair this reference with our free Road Signs practice tests for the fastest route to a confident pass.
The signing system
There are three basic types of traffic sign: signs that give orders, signs that warn, and signs that give information. Each type has a different shape. A further guide to the function of a sign is its colour. All triangular signs are red.
Circles
give orders
Triangles
warn
Rectangles
inform
Blue circles generally give a mandatory instruction such as "turn left", or indicate a route available only to particular classes of traffic, e.g. buses and cycles only.
Red rings or circles tell you what you must not do, e.g. must not exceed 30mph, no vehicles over the height shown may proceed.
Blue rectangles are used for information signs except on motorways, where blue is used for direction signs.
Green rectangles are used for direction signs on primary routes.
White rectangles are used for direction signs on non-primary routes, or for plates used in combination with warning and regulatory signs.
There are a few exceptions to the shape and colour rules, to give certain signs greater prominence. Examples are the "STOP" and "GIVE WAY" signs.
The words "must" or "must not", when used in the descriptions that follow, refer to legal requirements that have to be obeyed.
Circular road signs
Circular road signs give orders that you must follow by law, which is why they're often called regulatory signs.
Circles with a red border tell you what you must not do, while blue circles usually give a positive instruction — something you must do.
Every circular sign is mandatory and has to be obeyed. Some carry a diagonal red line through the symbol to make the prohibition clearer.
Common red circles include no U-turns and no entry. Common blue circles include turn left ahead and proceed right only.
Triangular road signs
Triangular signs are warning signs. They alert you to something ahead — a change in the road layout, a junction, or a hazard you need to prepare for.
They always have a red border to flag the risk and tell you to slow down and look.
Rectangular road signs
Rectangular signs inform you, and most direction signs use this shape. The colour tells you what kind of road you're on.
Blue rectangles give information on motorways and can also describe the nature of other roads.
Green rectangles direct you along primary routes, such as A-roads.
White rectangles direct you on minor roads or point you toward parking. Smaller white plates often sit beneath a triangular or circular sign — for example, to apply a specific speed limit. White rectangles are also used as the base for larger information signs that mix text with smaller triangular or circular symbols.
Rectangular signs also mark bus lanes and congestion charge zones.
Brown rectangles direct drivers to tourist attractions and facilities.
Yellow rectangles generally relate to traffic routing through roadworks.
Every UK road sign — Highway Code reference
These are the official traffic sign plates from the Department for Transport's Highway Code: Traffic signs publication — the same artwork the DVSA uses in your theory test. Study them in groups, not as isolated images.

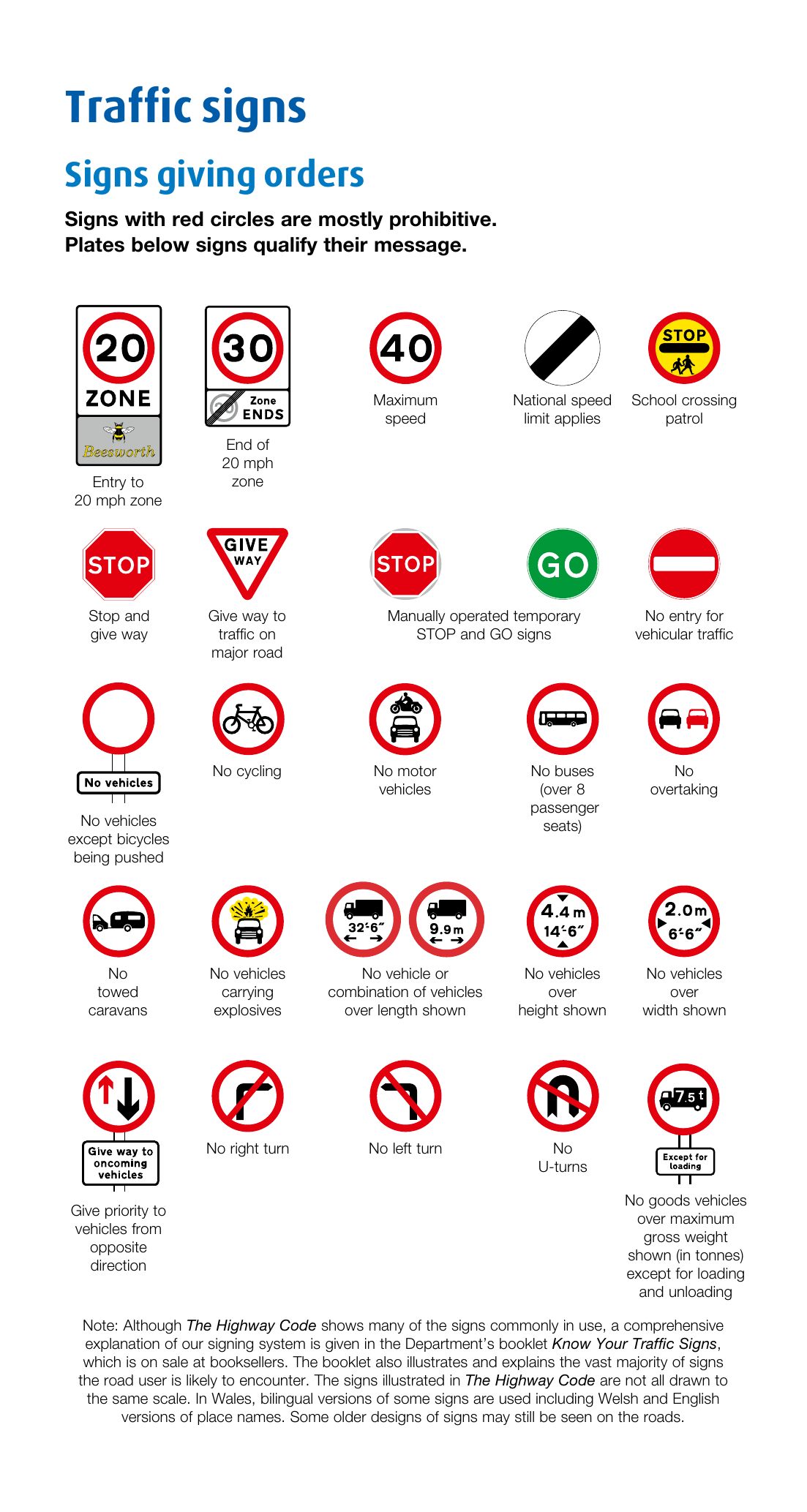

Signs giving orders
Mostly circular. Signs with red circles are mostly prohibitive — you must not. Plates below signs qualify their message. Includes STOP, give way, no entry, no overtaking, no left/right turns and the no-U-turn sign.

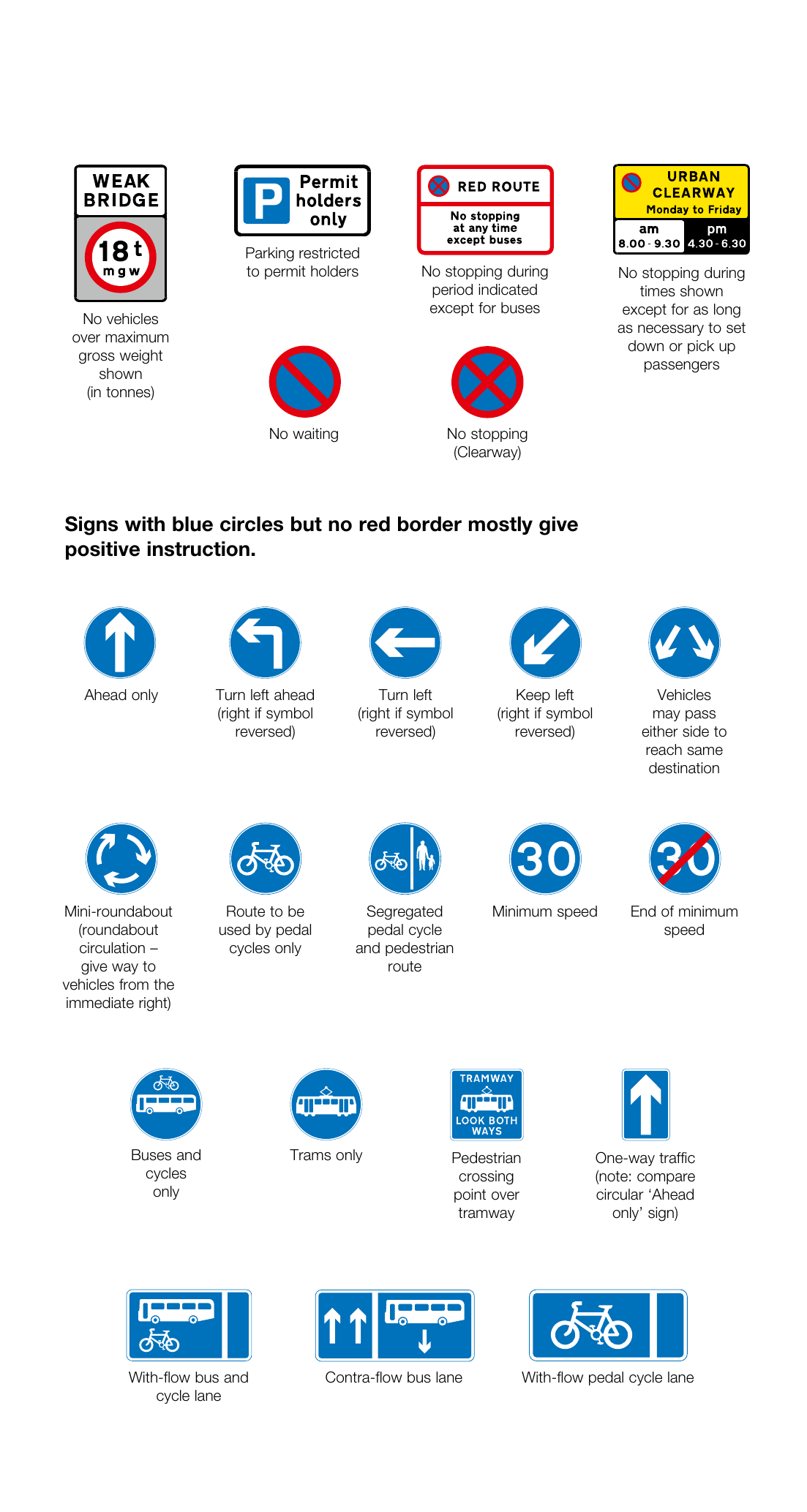

Signs giving orders — continued
No waiting and no stopping (clearway). Signs with blue circles but no red border mostly give positive instructions: ahead only, turn left/right, keep left, mini-roundabout, minimum speed, bus and cycle lanes.

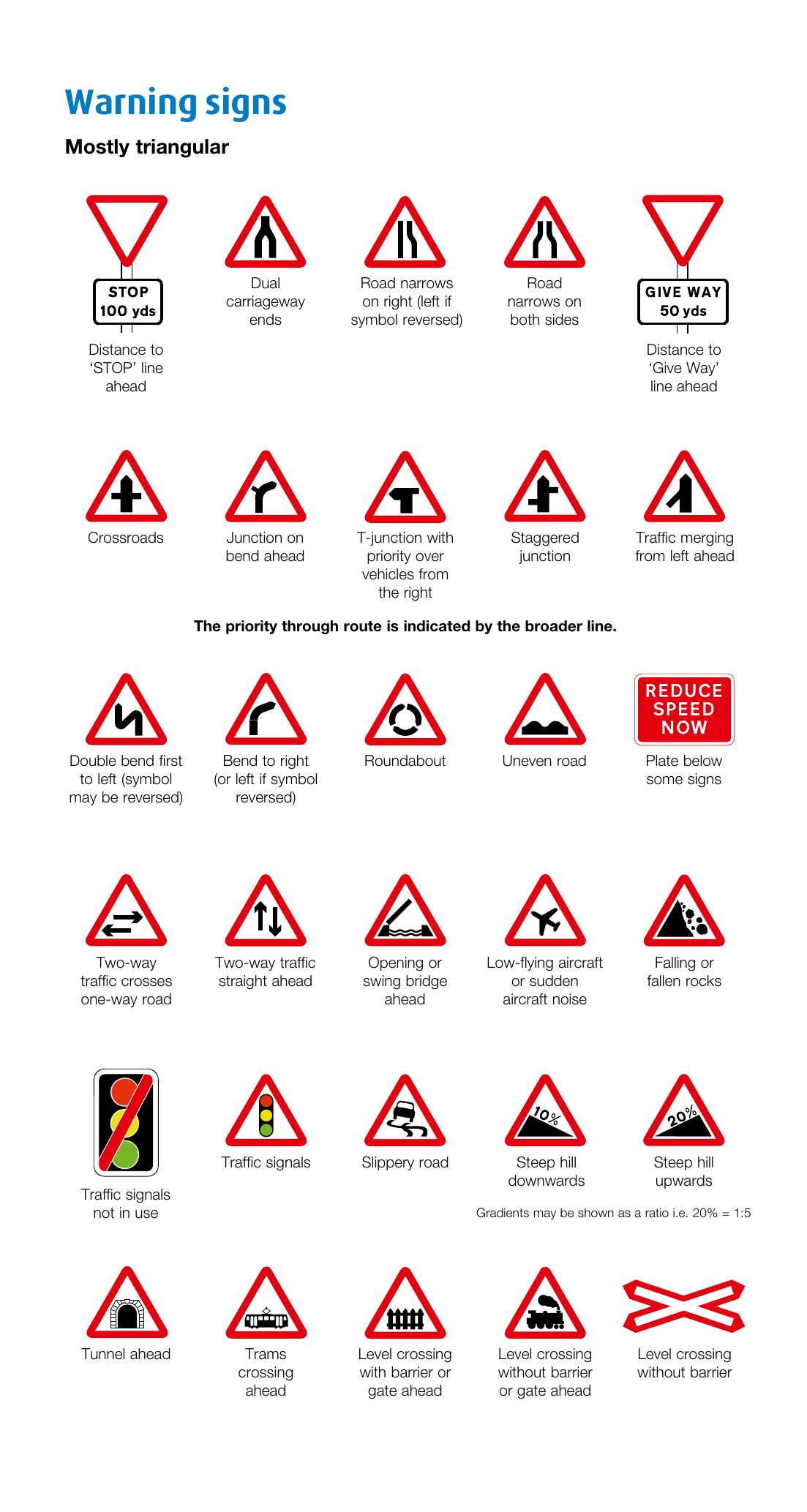

Warning signs
Mostly triangular with a red border, point up. They warn of a hazard ahead — slow down and look. Includes junctions, bends, road narrowing, roundabouts, two-way traffic, slippery road, steep hills, traffic signals and level crossings.

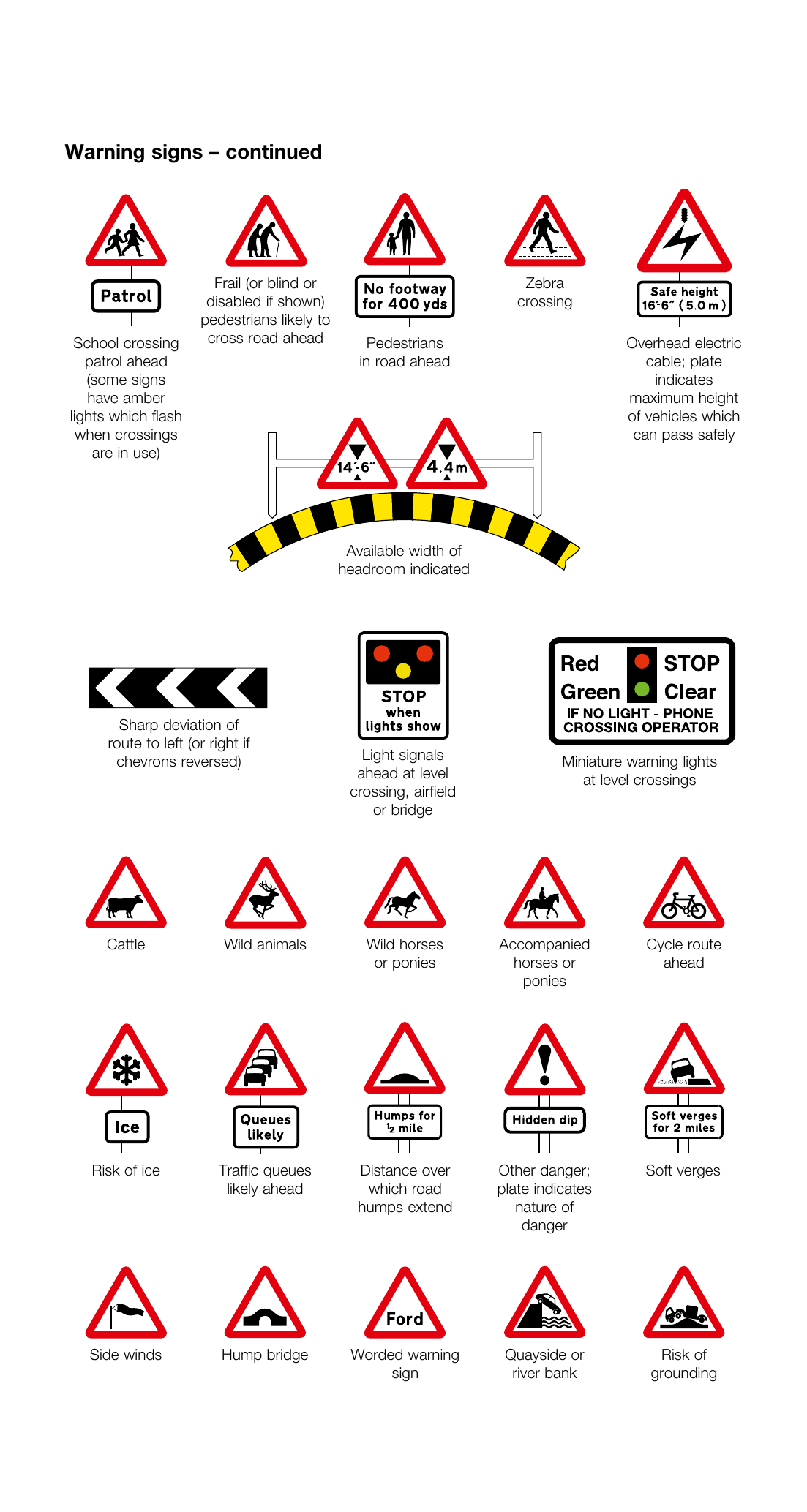

Warning signs — continued
School crossing patrol, pedestrians in road, zebra crossing, overhead electric cables, restricted headroom, sharp deviation, light signals, wild animals, cattle, horses, cycle route ahead, ice, queues, hump bridge, ford, side winds and risk of grounding.

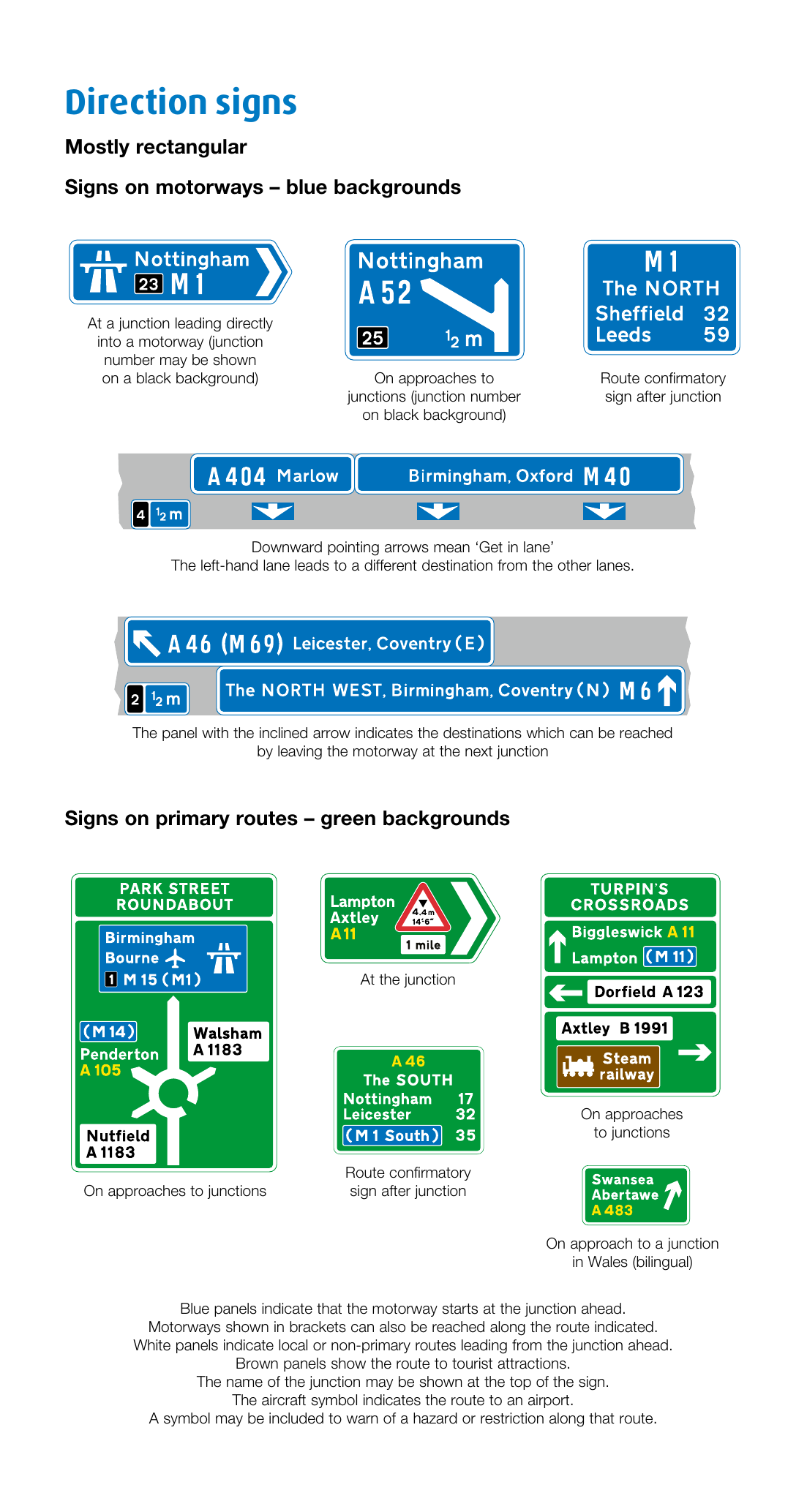

Direction signs — motorways and primary routes
Mostly rectangular. Blue backgrounds = motorway. Green backgrounds = primary A-road. The colour tells you the road class at a glance. Downward arrows mean 'get in lane'.

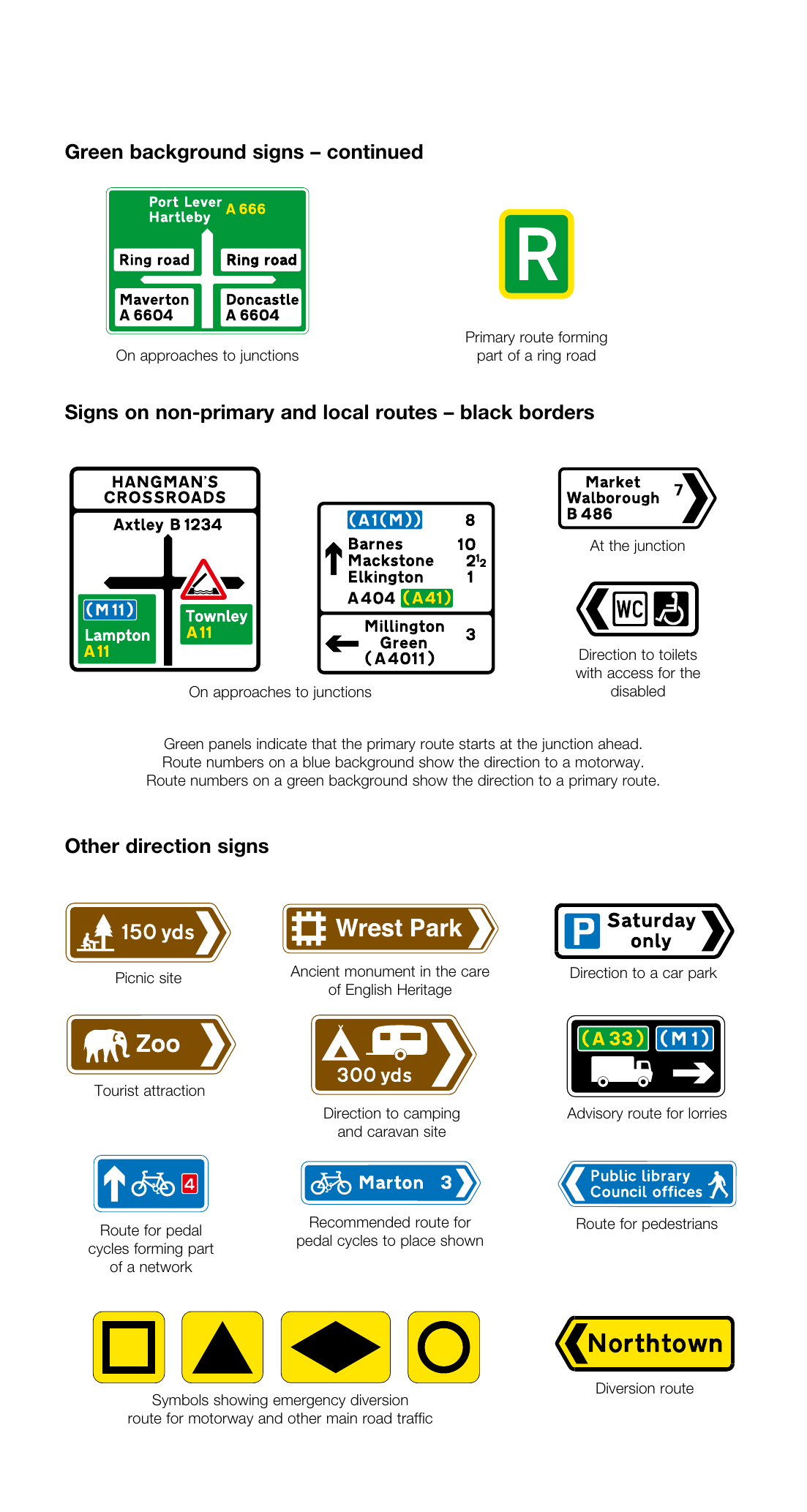

Non-primary routes & other direction signs
Black borders on white = non-primary and local routes. Brown panels = tourist destinations and attractions. Yellow diversion symbols (square / triangle / diamond / circle) match emergency diversion routes for motorway closures.

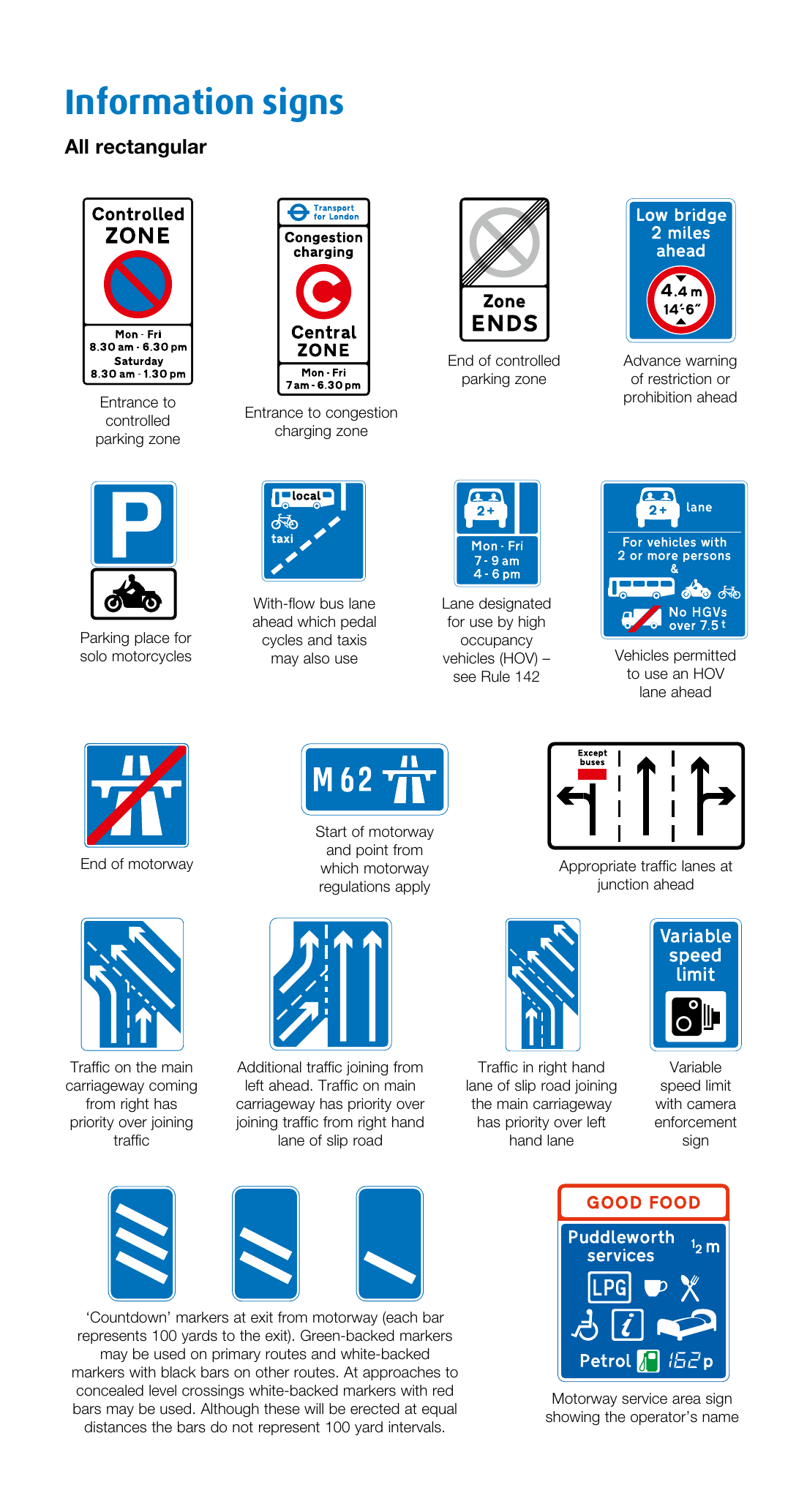

Information signs
All rectangular. Includes controlled parking and congestion zones, motorway start/end, lane indications, variable speed limits with cameras, motorway countdown markers and service area signs.

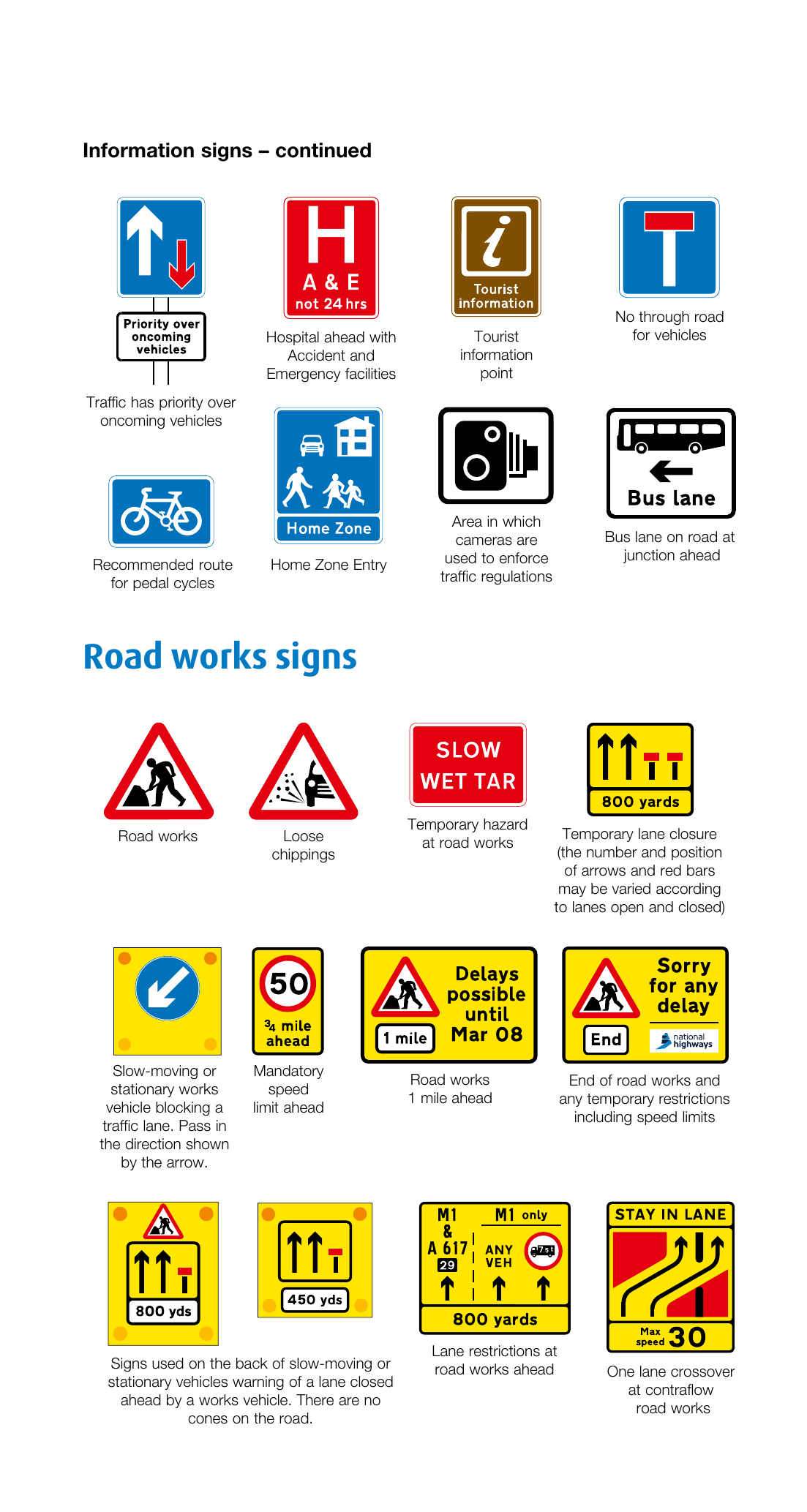

Information signs continued & road works
Hospital with A&E, tourist information, Home Zone, camera enforcement, plus road works signs. At road works, temporary signs use yellow backgrounds with black borders and override permanent signs while works are in place.
Source: Department for Transport, The Highway Code — Traffic signs (download the official PDF). Reproduced for educational purposes under Open Government Licence v3.0.
The shape-and-colour code
Triangular signs warn — they tell you something is ahead. Circular signs order — they give you a command you must obey. Rectangular signs inform — speed limits, route information, parking rules.
Red borders mean prohibition (you must not). Blue circles mean compulsion (you must). Green rectangles mean primary route information. Brown rectangles indicate tourist destinations.
The signs that catch people out
The 'no entry' sign (red circle with white horizontal bar) versus 'no vehicles' (red circle, blank white centre). The national speed limit sign (white circle with diagonal black line) — many candidates think this means 'end of speed limit'.
Octagonal STOP signs are the only octagonal signs on UK roads — and the only signs you must legally come to a complete stop at, even if the road is clear.
Road markings as signs
Markings on the road are also tested. White lines down the centre: short broken = hazard ahead, long broken = warning of hazard, double white = no overtaking unless one line is broken on your side.
Yellow lines at the kerb: single = restricted parking (times on a sign), double = no parking at any time. Zigzag yellow lines outside a school = no parking or stopping.

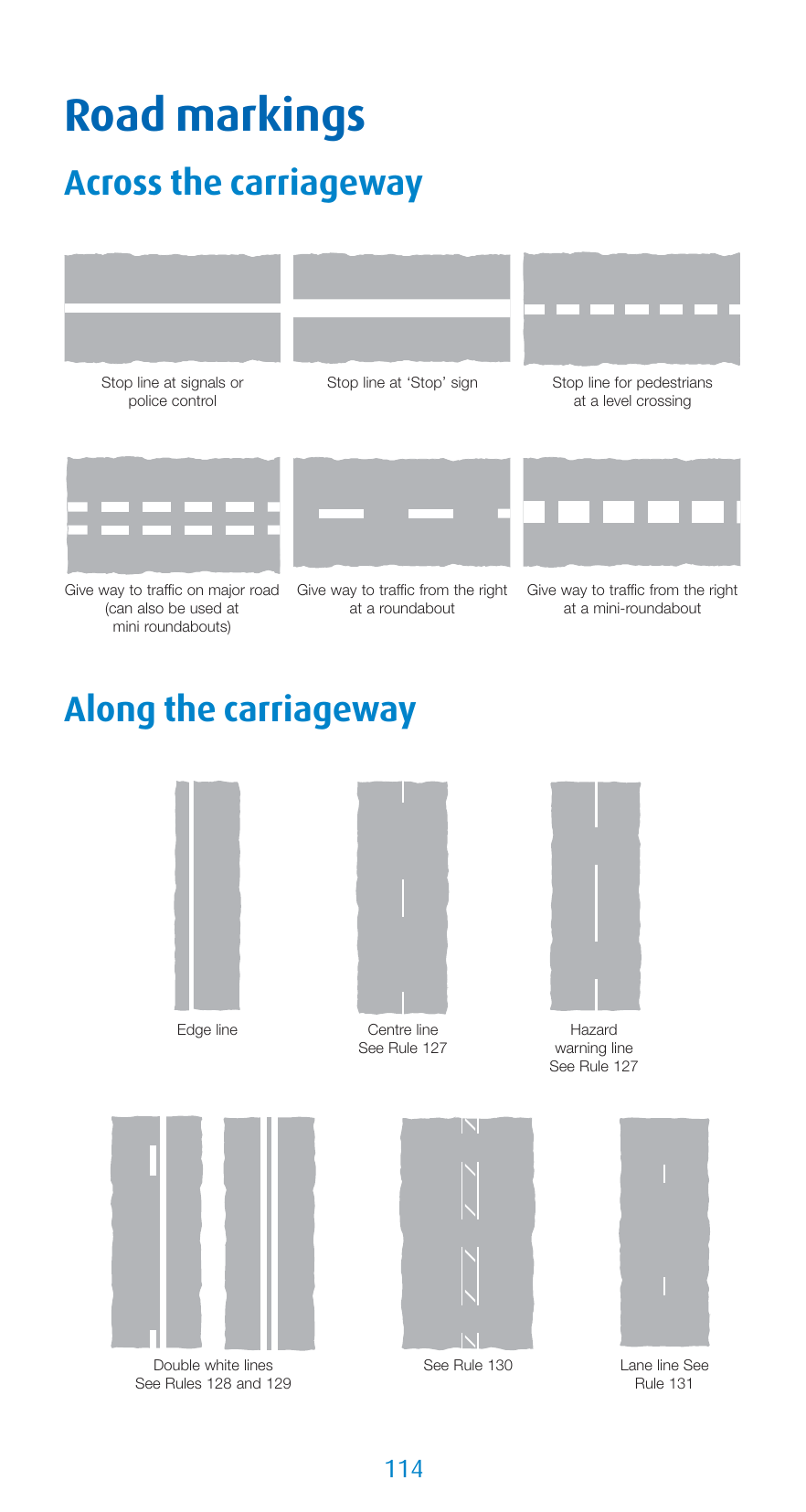

Across & along the carriageway
White lines painted across the road tell you where to stop or give way — at signals, STOP signs, level crossings and roundabouts. Lines running along the road separate lanes and warn of hazards: edge lines, centre lines, hazard warning lines, double white lines and lane lines.

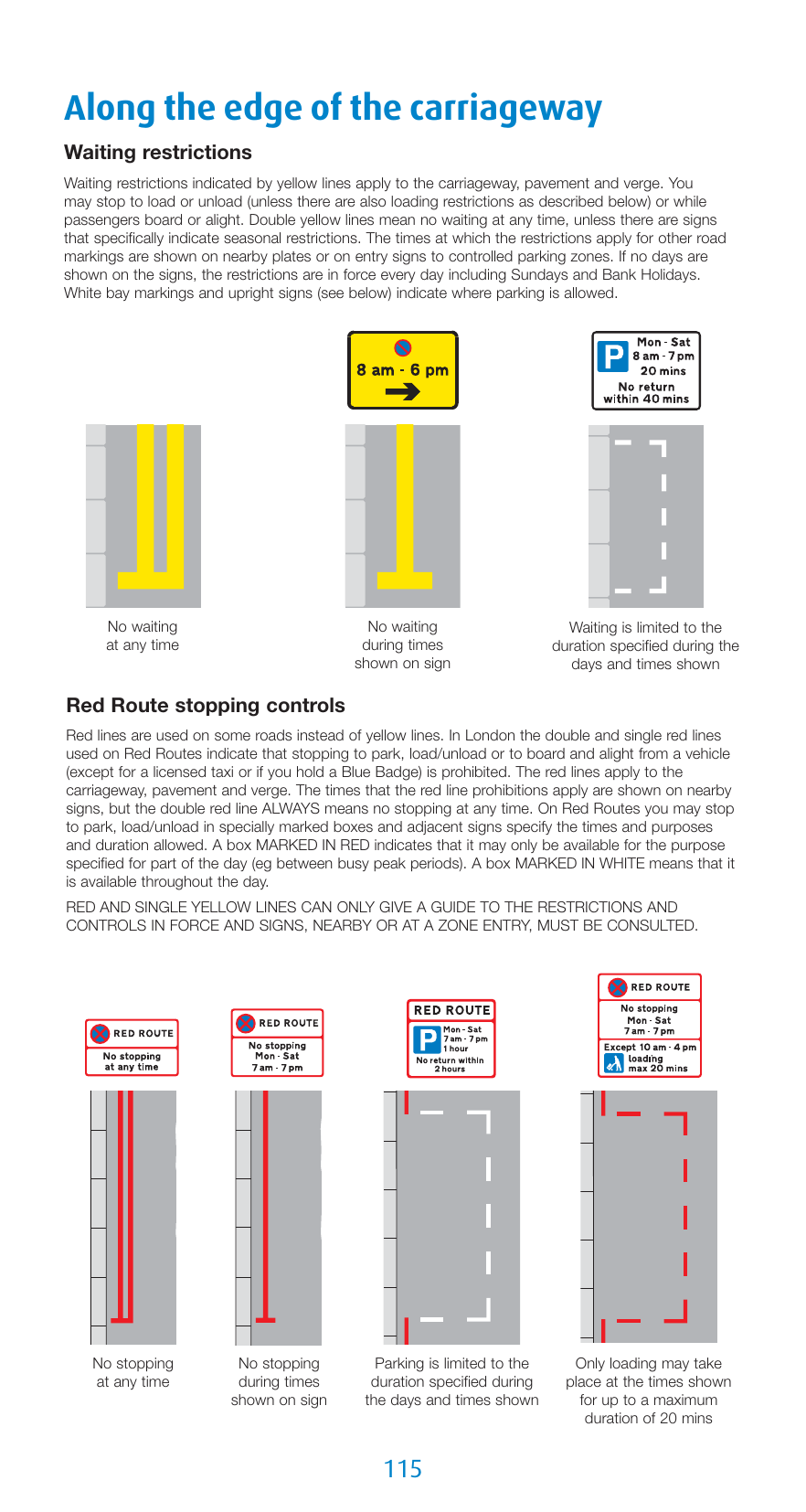

Along the edge of the carriageway
Yellow lines along the kerb show waiting restrictions: double yellow means no waiting at any time, single yellow means no waiting during the times shown on nearby plates. Red lines on London Red Routes are stricter — double red always means no stopping at any time, and red boxes restrict parking and loading further.

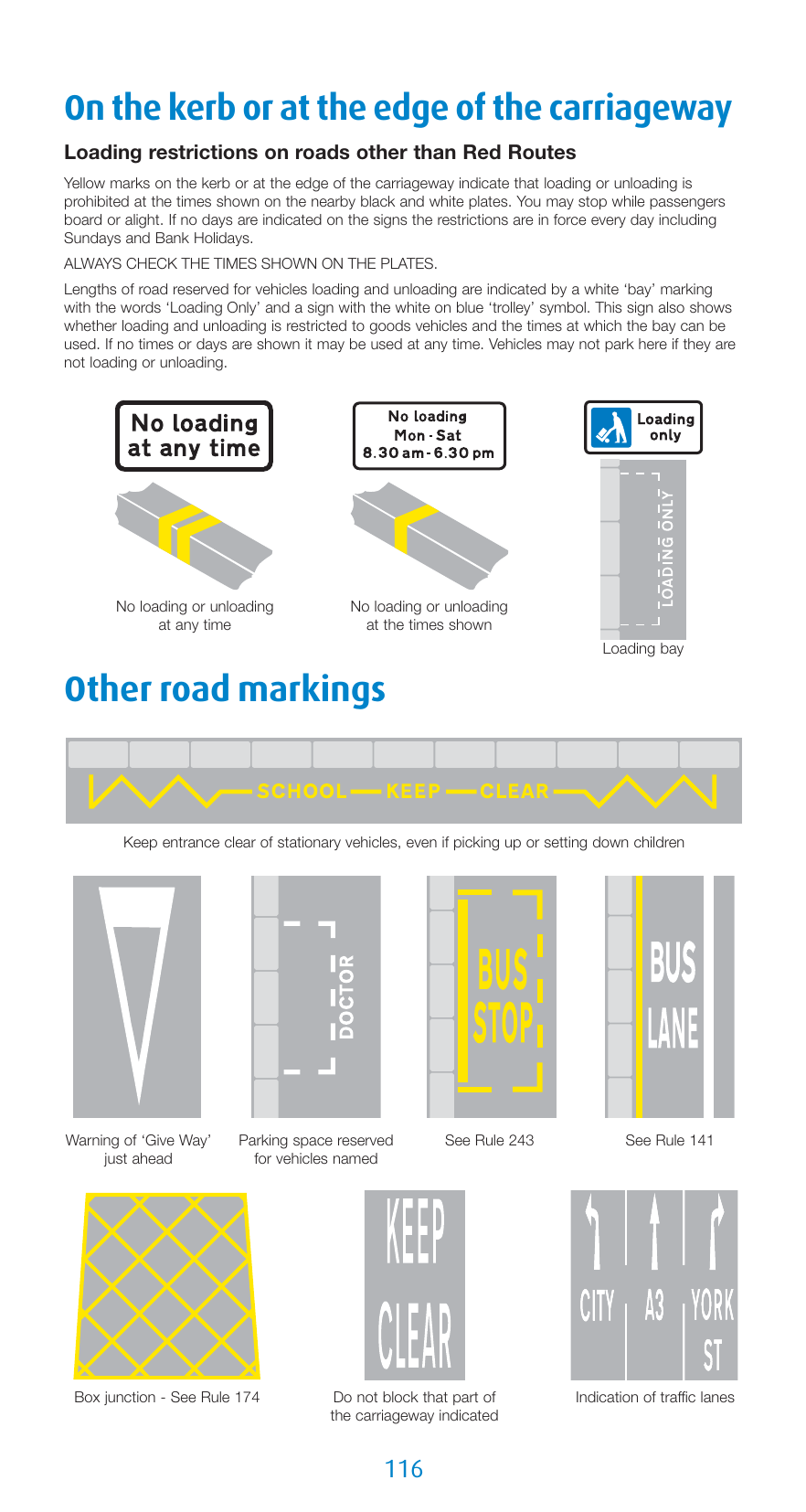

On the kerb & other road markings
Yellow marks on the kerb show loading restrictions, used together with black-and-white time plates. White 'Loading Only' bays mark where loading is permitted. Other markings include school keep-clear zigzags, give-way triangles, reserved parking bays, bus stops, bus lanes, box junctions, KEEP CLEAR markings and lane destination arrows.
Motorway and direction signs
Blue background = motorway. Green background = primary A-road route. White background = non-primary routes. Brown = tourist. The colour tells you the road class without reading the destination.

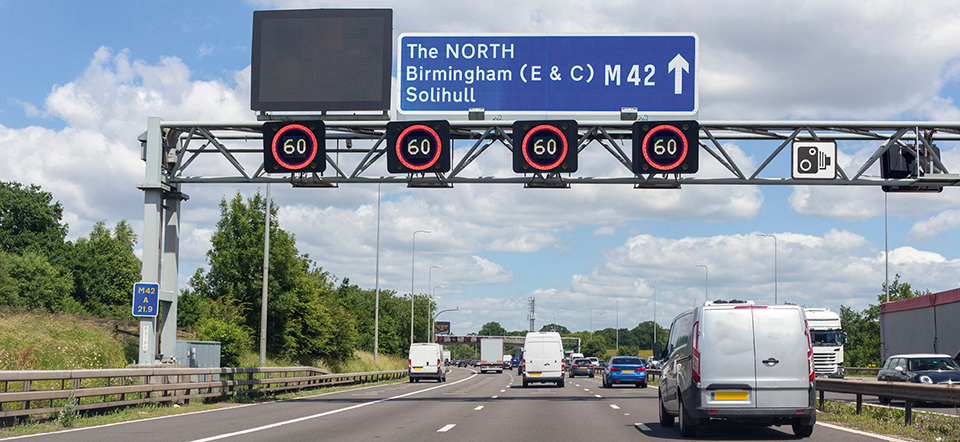

Motorway lane signs and matrix signs: red X means lane closed (do not enter); amber speed limit means temporary mandatory limit; arrow with red ring means leave this lane.
The Highway Code gives a full set of rules for motorway driving (rules 253–274). Many of these rules also apply to other high-speed roads. The summary below pulls together the key sections you'll be tested on.
1. General (Rules 253–254)
Prohibited vehicles. Motorways MUST NOT be used by pedestrians, holders of provisional motorcycle or car licences, riders of motorcycles under 50 cc, cyclists, horse riders, certain slow-moving vehicles and those carrying oversized loads (except by special permission), agricultural vehicles, and powered wheelchairs or mobility scooters.
Provisional car licence holders MUST NOT drive on the motorway unless they are accompanied by a DVSA Approved Driving Instructor and are driving a car displaying red L plates (or D plates in Wales) fitted with dual controls.
Traffic on motorways usually travels faster than on other roads, so you have less time to react. Use your mirrors earlier and look much further ahead than you would on other roads.
2. Motorway signals (Rules 255–258)

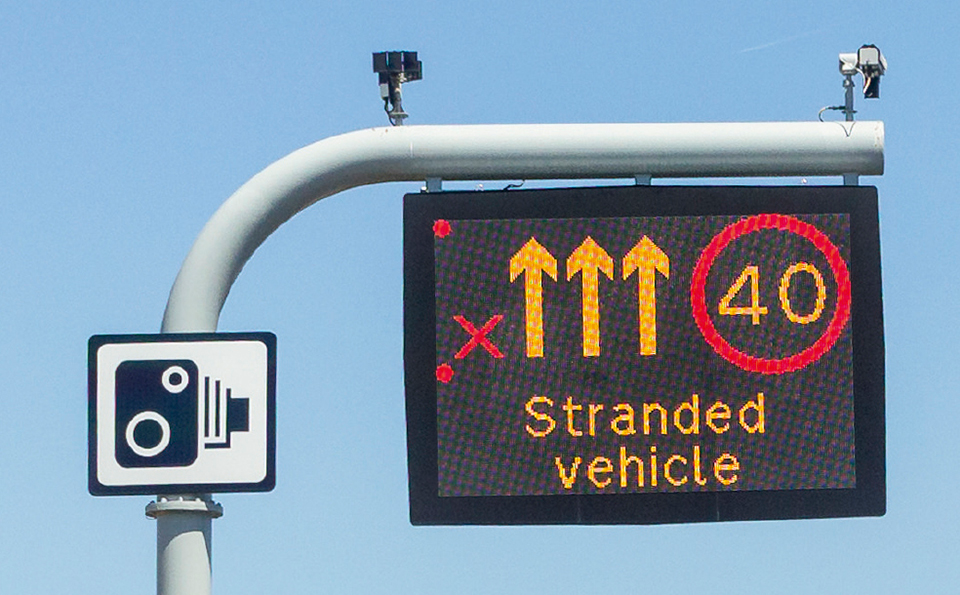

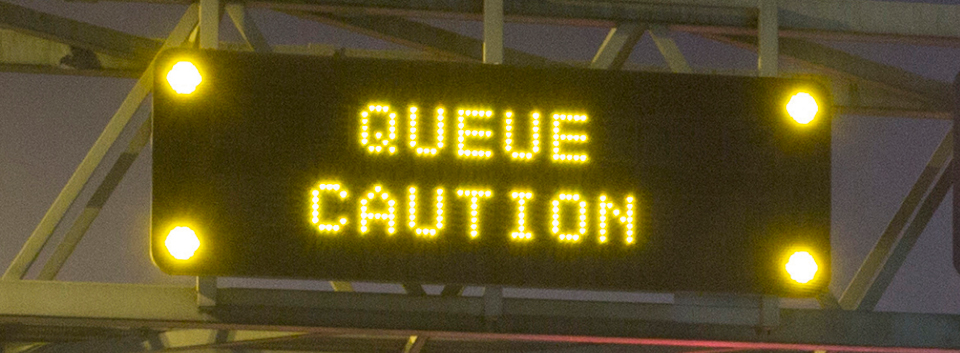

Signs and signals warn you of hazards ahead — incidents, fog, spillages or road workers on the carriageway you may not yet see. A single sign or signal can display advice, restrictions and warnings for all lanes, while lane-specific signs apply to individual lanes.

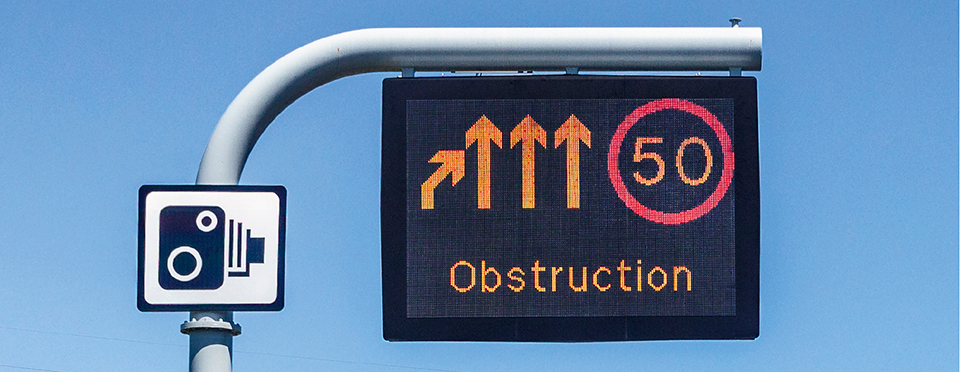

Amber flashing lights warn of a hazard ahead. Reduce your speed, be prepared for the hazard, and only increase speed when you pass a signal that is no longer flashing, or a sign showing the national speed limit or the word 'END', and you are sure it is safe to do so.

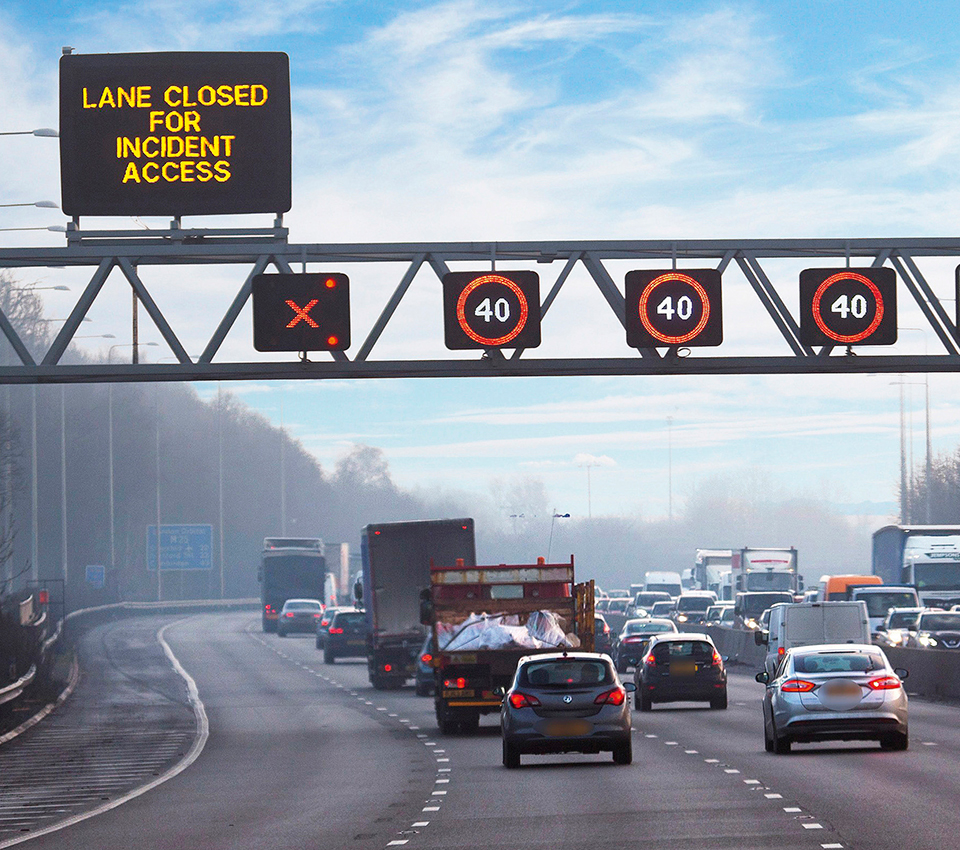

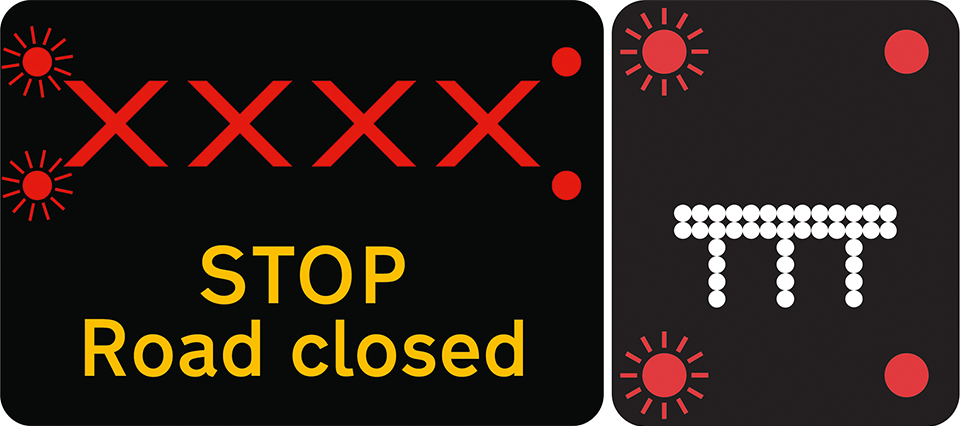

Red flashing light signals and a red 'X' on a sign identify a closed lane in which people, stopped vehicles or other hazards are present. You MUST follow the signs in advance to move safely to an open lane and MUST NOT drive in a closed lane until a sign shows a speed limit or 'END'. Where the left lane is closed at an exit slip road, the exit cannot be used.
Where red flashing light signals close all lanes shown on a sign, the road is closed. You MUST NOT go beyond the sign in any lane, or use the hard shoulder to pass the closure, unless directed by a police or traffic officer. These closures are enforced by the police.
3. Joining the motorway (Rule 259)
You normally join from a slip road on the left or from an adjoining motorway. Give priority to traffic already on the motorway, check the traffic and match your speed to fit safely into the left-hand lane.
Do not cross solid white lines that separate lanes, and do not use the hard shoulder. If the slip road continues as an extra lane, stay in it. Remain in the left-hand lane long enough to adjust to the speed of traffic before considering overtaking.
4. On the motorway (Rules 260–263)
When you can see well ahead and conditions are good, drive at a steady cruising speed within the speed limit that you and your vehicle can handle safely. Keep a safe distance from the vehicle in front and increase the gap on wet, icy or foggy roads.
You MUST NOT exceed a speed limit displayed within a red circle, or the maximum limit for the road and your vehicle. Speed limits are enforced by the police.
The monotony of motorway driving can make you sleepy. Make sure you are fit to drive and take regular breaks — service areas are provided along motorways for this purpose, and refreshment and rest facilities may also be reached from motorway exits.
Unless directed by a police or traffic officer, you MUST NOT reverse along any part of a motorway (including slip roads, hard shoulders and emergency areas), cross the central reservation, or drive against the traffic flow. If you have missed your exit, carry on to the next one.
Keep in the left lane unless overtaking, and return to the left when it is safe. Be aware of emergency services, traffic officers, recovery workers and others stopped on the hard shoulder or in an emergency area — if it is safe, move into the adjacent lane to give them more room.
5. Lane discipline (Rules 265–266)
On a motorway with three or more lanes, the right-hand lane MUST NOT be used (except in prescribed circumstances) if you are driving any vehicle drawing a trailer; a goods vehicle over 3.5 tonnes; a goods vehicle over 7.5 tonnes; or a passenger vehicle constructed or adapted to carry more than eight seated passengers in addition to the driver where a speed limiter is fitted.
Approaching a junction, look well ahead for signals or signs — direction signs may be placed over the road. If you need to change lanes, do so in good time. At some junctions a lane may lead directly off the motorway; only get in that lane if you wish to go in the direction shown overhead.
6. Overtaking and the hard shoulder (Rules 267–269)
Overtake only on the right, and only when it is safe and legal. Check your mirrors, judge speeds carefully, make sure the lane you'll join is clear ahead and behind, and take a quick sideways glance into the blind spot. Watch for fast traffic coming up behind, especially motorcyclists. Signal in good time, move out, and don't cut in on the vehicle you've overtaken.
Do not overtake on the left, or move to a lane on your left to overtake. In congested conditions where adjacent lanes are moving at similar speeds, you may keep up with traffic in your lane even if it means passing traffic in the lane to your right — but do not weave in and out of lanes.

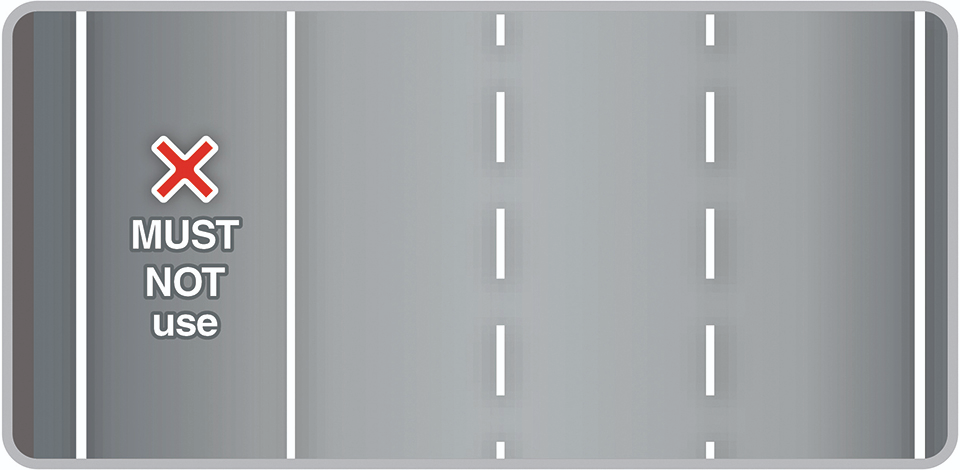

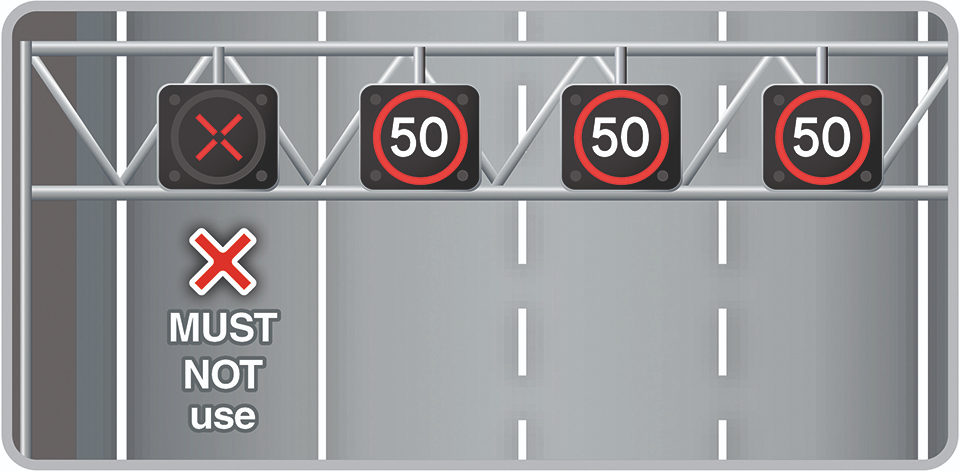

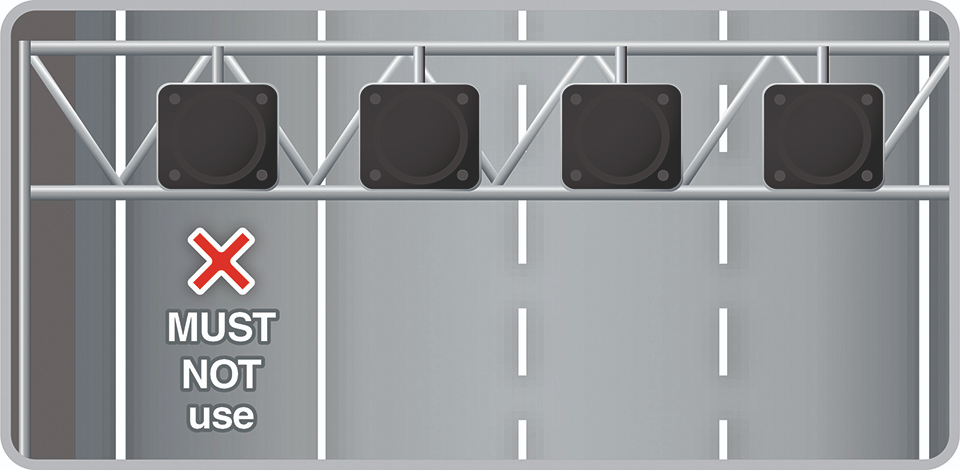

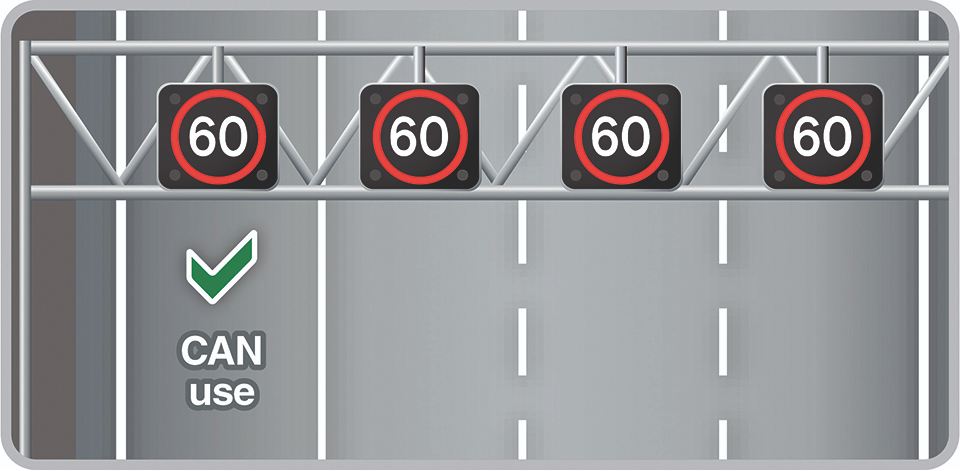

Hard shoulder. Where present, you MUST NOT use the hard shoulder except in an emergency or if directed to do so by the police, traffic officers or a traffic sign. On some motorways the hard shoulder is opened as an extra lane during congestion: a red 'X' or blank sign above means you MUST NOT use it, while a speed limit shown above means it is open as a running lane.
7. Stopping (Rules 270–272)

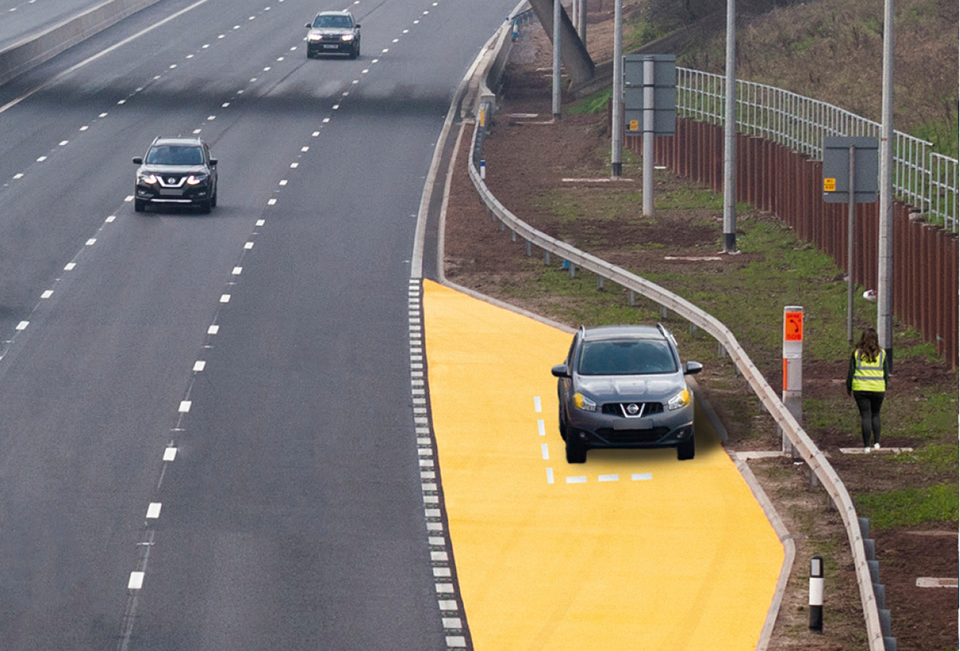

Emergency areas are located along motorways with no hard shoulder, or where the hard shoulder is used as an extra lane, and MUST only be used in an emergency. They are marked by blue signs with an orange SOS telephone symbol and may have orange surfacing.
You MUST NOT stop on any carriageway, emergency area, hard shoulder, slip road, central reservation or verge except in an emergency, when told to do so by the police or traffic officers, or when directed by an emergency sign or red flashing light signals. Do not stop on any part of a motorway to make or receive mobile phone calls, except in an emergency.
You MUST NOT pick up or set down anyone, or walk on a motorway, except in an emergency.
8. Leaving the motorway (Rules 273–274)
Unless signs show that a lane leads directly off the motorway, you will normally leave by a slip road on your left. Watch for the signs that tell you you're getting near your exit, move into the left-hand lane well before you reach it, signal left in good time and reduce your speed on the slip road as needed.
On leaving the motorway or using a link road between motorways, your speed may be higher than you realise — 50 mph can feel like 30 mph. Check your speedometer and adjust accordingly. Some slip roads and link roads have sharp bends, so slow down.
Study tips
Don't try to memorise individual signs. Learn the system first (shape + colour = meaning) then drill the specific signs that don't follow the rule (STOP, give way, no entry, national speed limit).
Use free flashcard apps for the 30 most-tested signs in the final week. Then take three full mocks under timed conditions to lock everything in.
Warning signs to know cold
Triangular warning signs cover most of the marks. The most-tested examples: 'school crossing patrol' (children walking, sometimes with the lollipop-stick variant), 'T-junction', 'staggered junction', 'roundabout ahead', 'level crossing with barrier', 'level crossing without barrier or gate', 'crossroads', 'two-way traffic', 'risk of grounding' (humpback bridge or steep ramp), and 'falling rocks'.
Memorise these as a set: every triangular sign points up; the only triangle that points down is the give-way sign, which is in a class of its own. If you see a triangle, slow down, scan and prepare to react.
Order signs and prohibitions
Circular signs with red borders prohibit. Common examples: 'no entry' (red circle, white horizontal bar), 'no overtaking' (two cars, red one on the right), 'no motor vehicles', 'no vehicles over X tonnes', 'no waiting', 'no stopping' (clearway — solid red disc with blue cross).
Blue circles compel. 'Turn left ahead', 'mini roundabout', 'pedestrian zone', 'cycle route only', 'tram route'. The Highway Code wording 'must' indicates a legal order, while 'should' is advisory — only signs in red and blue circles carry legal force.
Information, motorway and temporary signs
Rectangular signs inform. White with black border: regulations on parking. Green: primary route information. Blue: motorway information including service distances and lane closures. Brown: tourist destinations.
Temporary signs at roadworks use yellow backgrounds with black borders — they override permanent signs while the works are in place. Variable matrix signs above motorway lanes show real-time speed limits and lane closures (red X = lane closed; do not enter).
Road markings to learn alongside the signs
Road markings are tested with the same weight as signs. Across the carriageway: a single broken white line = give way (slow down and prepare to stop); double broken white lines = give way at a junction; a solid white STOP line = legal stop required.
Along the carriageway: short broken centre line = hazard ahead; long broken = warning of hazard; double white line with a solid line on your side = no overtaking unless safe and the broken line is on your side.
Yellow lines at the kerb: single = restricted parking (check the times on the nearby plate); double = no waiting at any time; double red = no stopping at any time on a Red Route. Zigzag yellow lines outside a school zone forbid stopping or parking even briefly.
